Coatings

Anti-Skid for Roads and Pathways

A high performance, flexible polyurethane based anti-skid system built on LeesonGrip® 2-1 for installation onto asphalt and concrete substrates. The system gives a hard wearing anti-skid surface approved for all Type 1 Roads by the BBA, making it ideal for roads and pathways.

Enquire about this product

Key Uses

All Type 1 Roads
Cycle Paths
Walkways
Drives
Pathways

Benefits

Anti-Skid Surface
BBA Approved for over 12 years
Fast Curing
Excellent Wear Performance
No odour
Non Flammable
Resistant to oil, diesel & petrol

Technical Specification

Product Specification

Product: LeesonGrip® 2-1 (D3149/20). Thickness: 1.5-2mm of PU Resin.

Substrate Requirements

The substrate should be dry to 75%RH as per BS8204 and free from rising damp. Asphalt: No primer required. Concrete: Primer must be used. Minimum 25N/mm², free from laitance, dust and other contamination. Detailed installation instructions are available on request.

Products Included in This System

PrimerConprime-2 (E4568)0.25kg/m²

Chelford 52 Sand Or PU3922 PU primer1kg/m²

Bonding CoatLeesonGrip® 2-1 (D3149)1.7-2kg/m²

AggregateCalcined bauxite 1-3mmNet 7kg/m²

Technical Information

The figures below are typical properties achieved in laboratory tests at 21°C and 55% Relative Humidity.

Temperature Resistance: Resistant to temperatures of up to 70°C for long periods.
Chemical Resistance: To various acids, diesel and petrol as well as strong bases.
Scuffing at 45°C: After 500 wheel passes Erosion Index ≤ 3.
Wear (Hot Applied): SRV (Initial) ≥ 65.
Wear (Hot Applied): SRV (After 100,000 wheel passes) ≥ 70.
Bond Strength: Greater than the cohesive strength of the concrete, >3 N/mm².
Speed of Cure: Traffic Ready: 2 hours @ 20°C.
Environmental Impact: The finished system is assessed as non-hazardous to health and the environment. The long service life and seamless surface reduce the need for repairs, maintenance and cleaning. Environmental and health considerations are controlled during manufacture of the products by Leeson Polyurethanes staff.
Further Information: To ensure you are specifying a fit for purpose surface for your project please consult our Area Sales Manager for your area or contact us on lpusales@icpgroup.com.

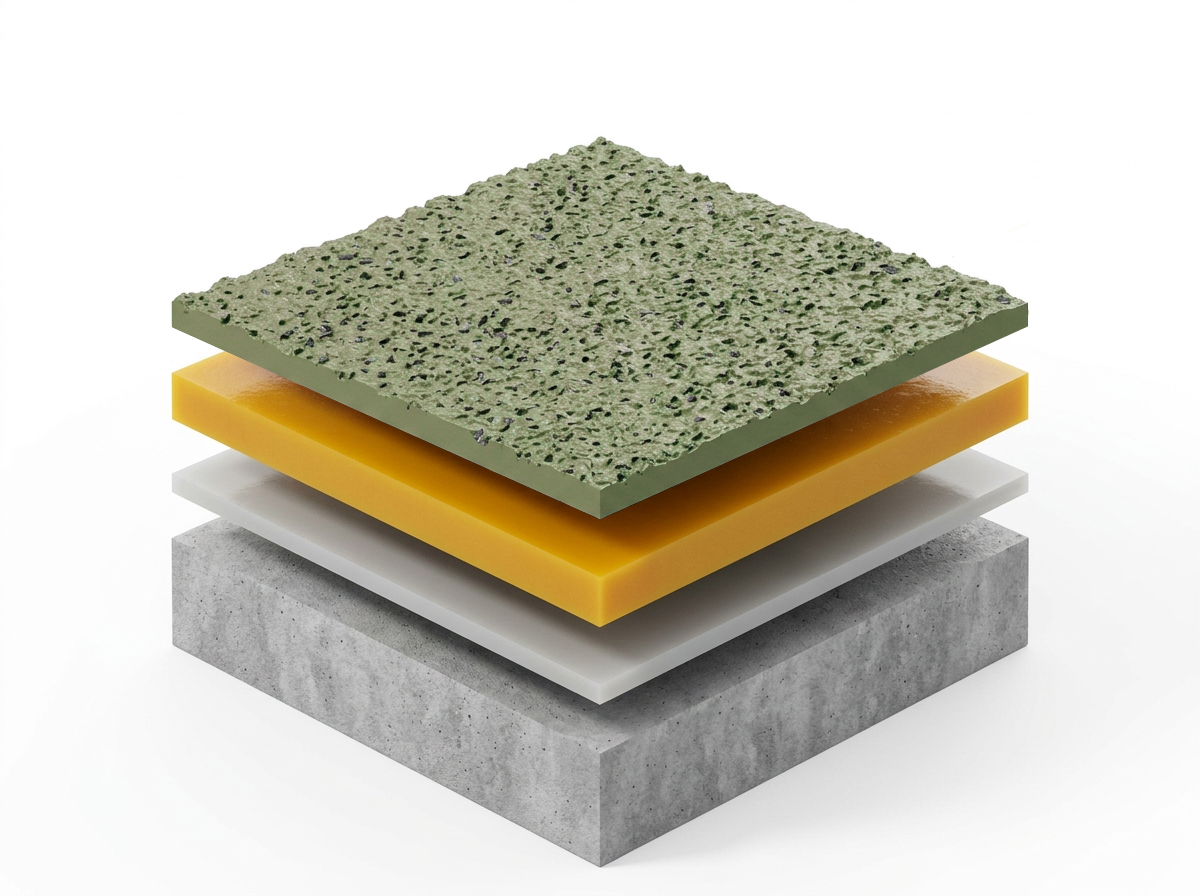

System Build-Up

Installation Service

The installation should be carried out by an experienced contractor, details of contractors in your area can be obtained by contacting the company. For BBA approved work, a contractor approved by the BBA for this system must carry out the installation.

Important Note

Leeson Polyurethane's products are guaranteed against defective materials and manufacture and are sold subject to its standard Terms and Conditions of Sale, copies of which can be obtained on request.
